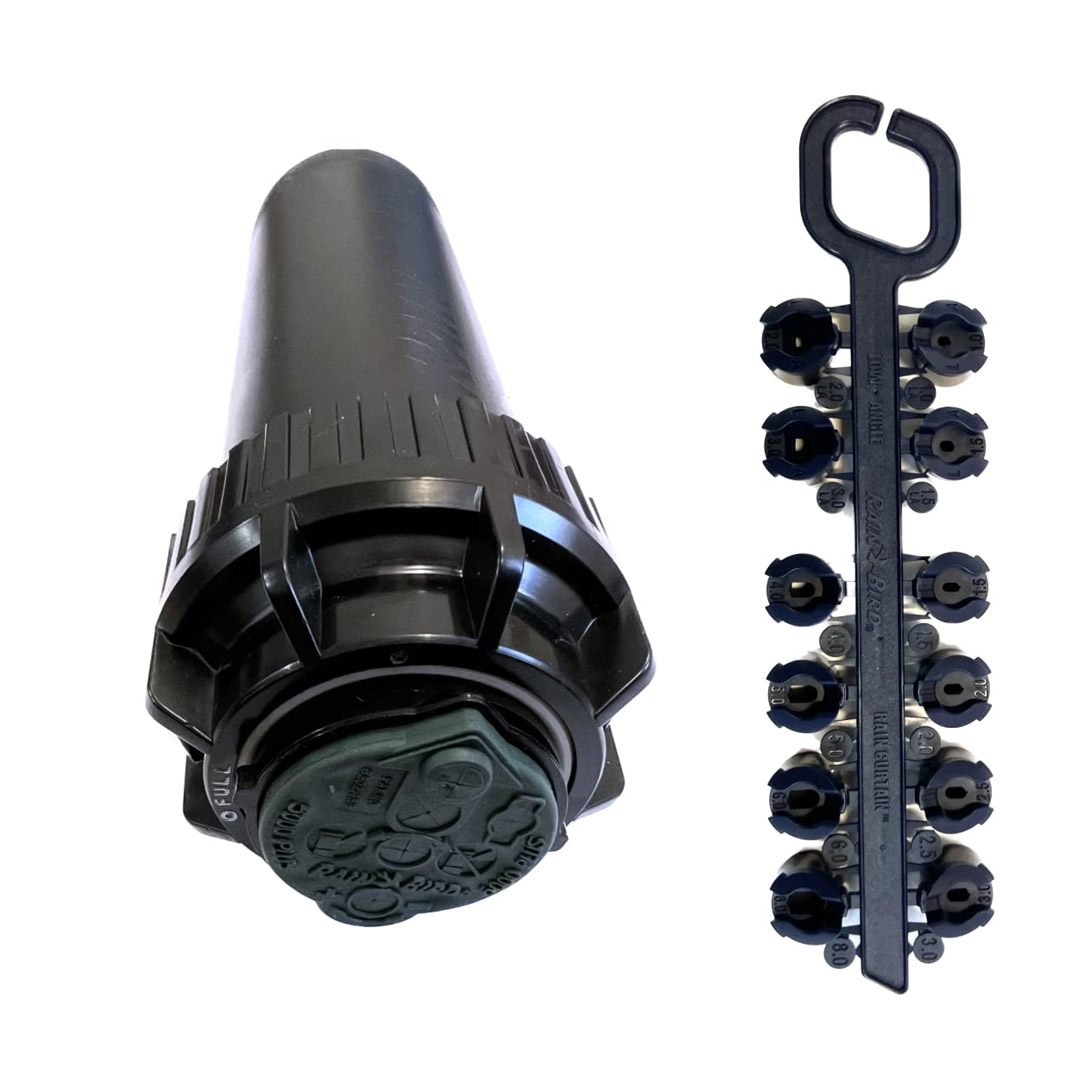

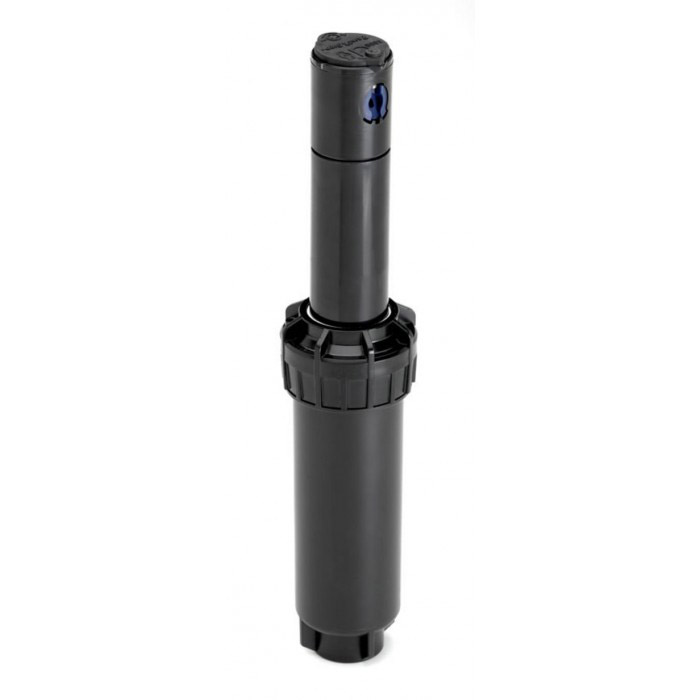

Rain Bird 5004 Plus PC 3/4″ Turbine Sprinkler

Product Code: 0050-ir

From: £44.40

Estimated Delivery: 5-12 days subject to your delivery post code*.
Buy Now - Pay Later Available with Klarna

- Buy Now and pay in 30 days

- Buy Now, pay in 3 instalments (Split your payment into 3 smaller instalments over 60 days).
Fertilisers and Plants Care
5% off £1000 7.5% off £2000 10% off £3000 Reward discounts automatically applied at checkout (Exclusions apply). Want help and advice, or want to discuss a large order? Call us on 0203 1375 159 and we will be happy to help!

The 5004 Plus PC 3/4″ pop-up turbinesprinkler is a variable sector model, not fixed but adjustable from 40° to 360°. The presence of a sturdy rubber cover, provides greater wear resistance in residential or commercial apllications.

Nozzles with Rain Curtain Technology:

  • Rain Curtain™ nozzles standard on all 5000-5000Plus sprinklers
  • Larger droplets for uniform distribution
  • Effective watering near the sprinkler
  • Even distribution across the entire radius
  • Nozzle set offers ranges from 7,6 to 15,2 m with 4 low angle nozzles (10° trajectory) and 8 standard Rain Curtain™ nozzles (25° trajectory)
  • Simplified nozzle placement using guides

Installation and Maintenance of the 5004 Plus PC 3/4″ Turbine Sprinkler:
Clutch mechanism for quick adjustment during installation
Easier maintenance with new self-cleaning arc adjustment screw
The 5000 Plus has a flow shut-off feature that stops water flow to a specific sprinkler while the system is still running
Top arc adjustment requires only a flat-blade screwdriver
Range adjustment screw allows you to reduce radius by 25% without changing the nozzle

5004 Plus PC 3/4″ Turbo Rotor Sprinkler

Specifications

¾” female threaded connection
Lift Height (from ferrule to center of nozzle): 10 cm
Overall body height (with turret retracted): 18,5 cm
Exposed surface: diam. 4.1 cm
Range: from 7.6 to 15.2 m
Throw: 5.7 m with radius-breaking screw
Pressure: from 1.7 to 4.5 bar
Precipitation rate: from 0,17 to 2,19 m3/h
Trajectory angle
– Rain Curtain™ nozzle with standard trajectory: 25°
– Rain Curtain™ nozzles with low trajectory: 10°

Sprinkler life :
Standard rubber top cover for added protection
Rugged cover provides greater wear resistance in residential or commercial applications
Heavy-duty return spring: ensures optimum turret retraction
Self-cleaning sealing gasket protects internal components from contamination and ensures optimum turret lift and retraction
Additional O-rings and gaskets for added protection in installations using water with suspended material

Dimensions
Lifting height: 10.2 cm
Total body height: 16.8 cm
Exposed surface: diam. 2.9 cm

Click to download:
Technical data sheet Turbine sprinkler 3/4″ 5004 Plus PC
Brochure Turbine Sprinkler 3/4″ 5004 Plus PC
